How to use inflatable test dummy

2025-08-09 16:37:48

Inflatable humanoid water bags are made by tear resistant 0.9mm PVC tarpaulin, reinforced overlap heat bonding, which can simulate human weight in water park/ amusement park equipment test.

How to use it? here the instructions.

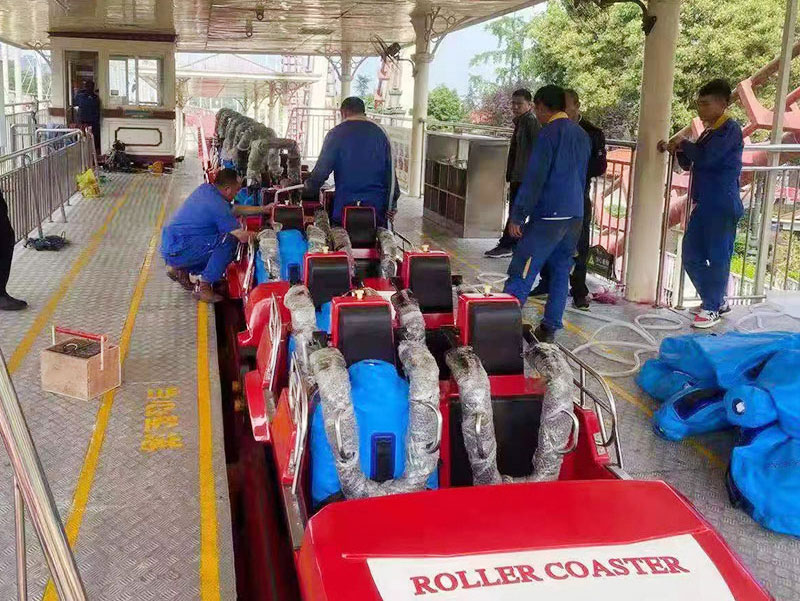

Take roller coaster testing as an example:

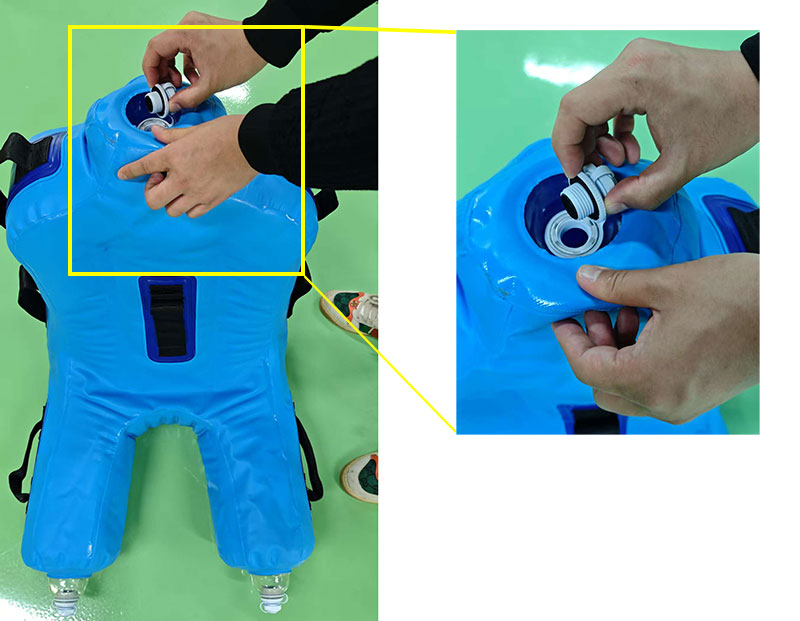

1. Unfold the product, keep 2 valves at “legs” closed and open the top valve.

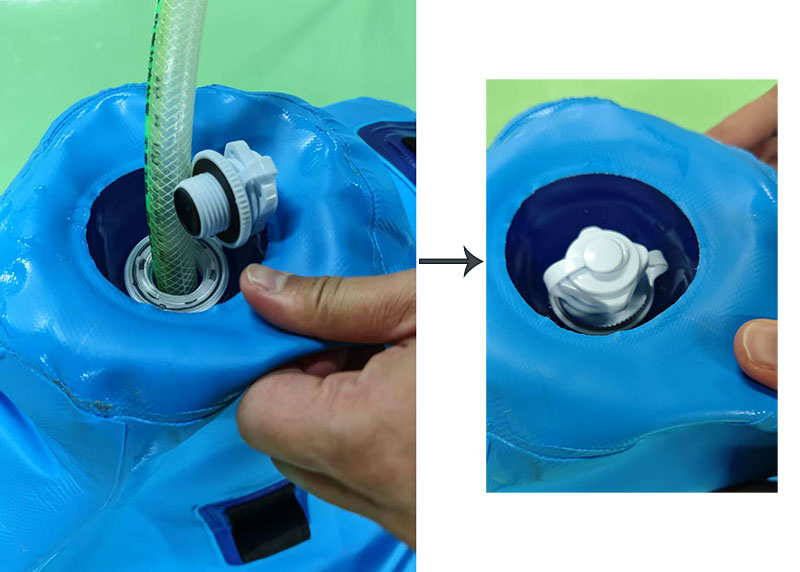

2. Fill water from top valve to 75kg or other weight required and close the valve.

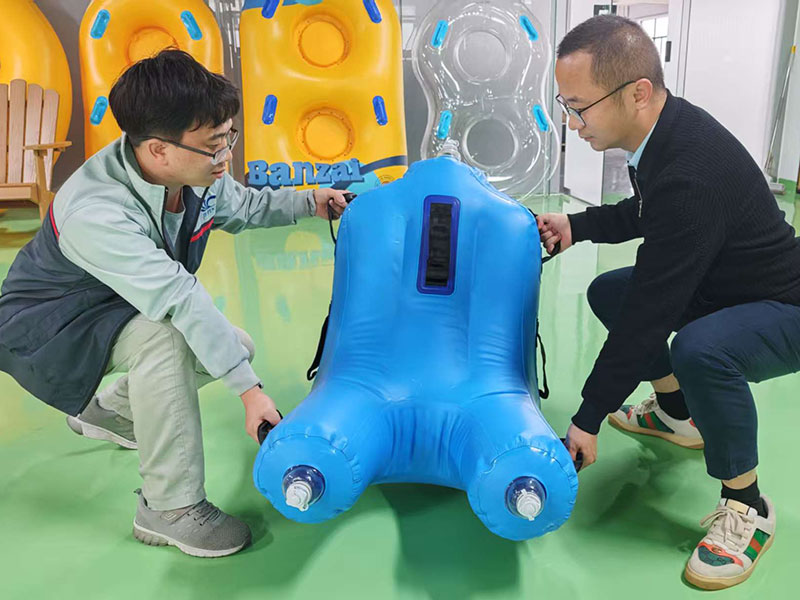

3. Move and carry the item with handles as shown to the equipment.



4. Fasten on equipment with belt or holder and test before running.

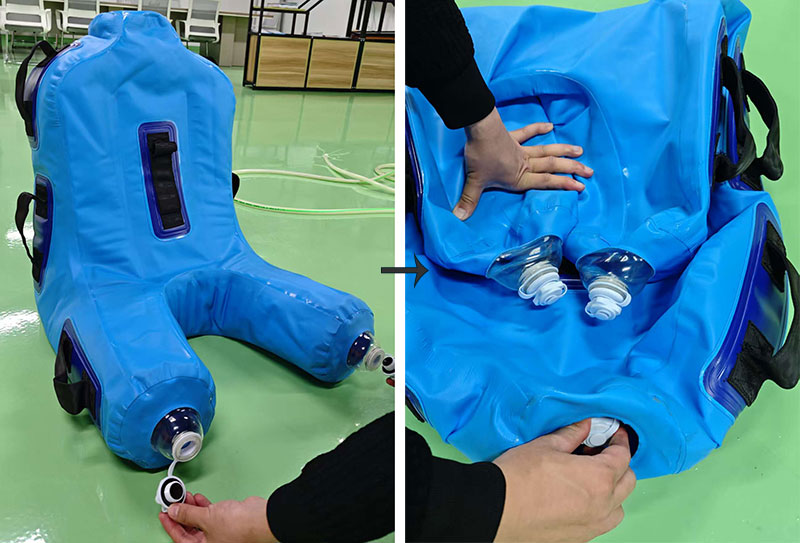

5. Open 2 valves at “legs” to drain water and close all valves for stock.

6. Rinse off and clean it with damp cloth or brush. Dry off before long term storage. Store it in a clean and dry place. Avoid rain or direct sunshine.
7. The item can be repaired with PVC patches and Locatite or Maxbond 5550 glue if small leakage.

8. We have 90kg, 75kg, 50kg types available.
